For MAC 3 Port 5.4W Electronic Boost Control Solenoid Valve Fitting Connector

MAC 3 Port 12V Electronic Boost Control Solenoid Valve Brass Fittings Connector

The (Automotive Grade) 3 port valve is a true solenoid. It is rated to hold boost pressures far in excess of levels that any petrol turbocharged engine is ever likely to see.

This extremely compact Solenoid only has a 2 wire installation and has 3 port connections .These are used to compliment many different aftermarket electronic boost controllers and these are also the tuners favorite to use in conjunction with a standard or aftermarket Stand Alone ECU's.

Specifications

• TYPE: 3 port solenoid - this is the most common method for controlling boost.
• 5.4W, 25.4ohm coil
• Simple 2 wire connection
• Full vacuum to 120psi capable
• Pulse width modulation (PWM) driven
• Numbered port connections (1 to 3)

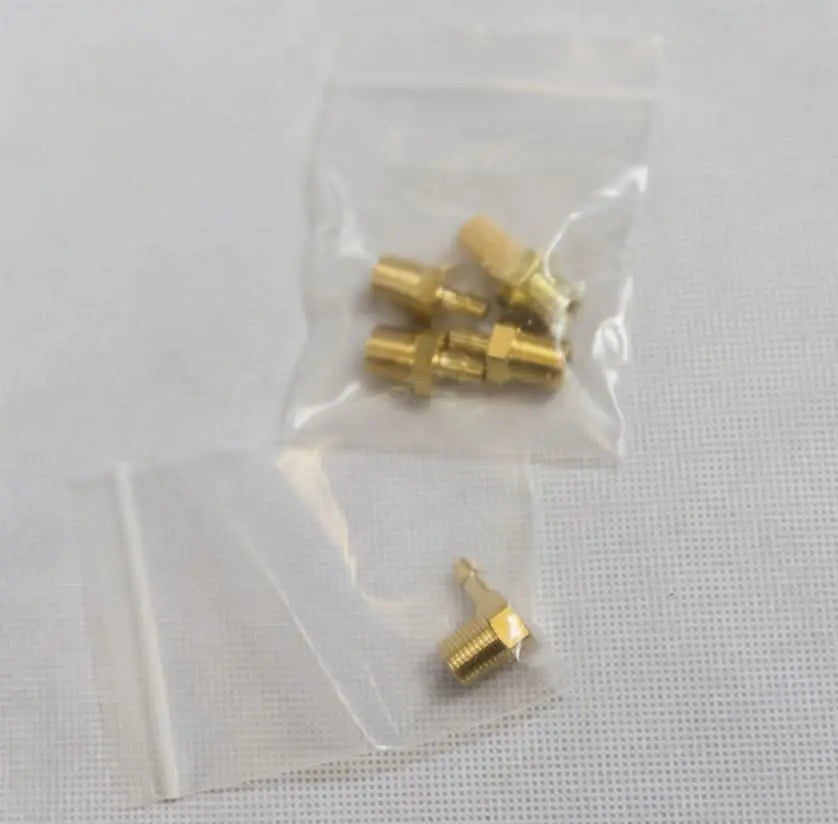

• 3 x high quality brass fittings included (2 x barbed, 1 x sintered air vent/muffler - sintered is used to avoid having to run another line to your air filter).
• Suitable for most turbo and supercharged applications
• Compatible / used by most aftermarket ECU application
