Intercooler Piping Kit | Honda Civic EG EK DC2 B16 B18 B18C B20 GSR Si

D&B Series Intercooler Piping Kit – Honda Civic EG EK DC2 | B16 B18 B18C B20 GSR Si

Built for B-Series and B20 turbo builds, this intercooler piping kit is engineered for Honda Civic (EG/EK) and Integra (DC2) chassis running top-mount or select ram-horn turbo setups. Designed to deliver reliable, high-flow charge air routing with minimal fitment hassle.

Fitment & Compatibility

• Fits Honda Civic EG, EK and Acura Integra DC2
• Compatible with B16, B18, B18C, B20, GSR, and Si applications
• Designed for intercoolers approximately 31.5 inches in length (longer/shorter cores may require minor modification)
• Works with most top-mount kits and select ram-horn style kits (minor modification may be required)
• Intended for use with Skunk2 Pro Series / Type-R style intake manifolds — note: Skunk2 Ultra manifolds angle the throttle body differently and will require an angled silicone coupler for proper connection

Specifications

• Cold side (post-intercooler): 3 inch
• Hot side (pre-intercooler): 2.5 inch (suits most 2"–2.5" turbo outlets)
• Turbo inlet: 4 inch (draws cold air from headlight area — headlight removal or modification required)

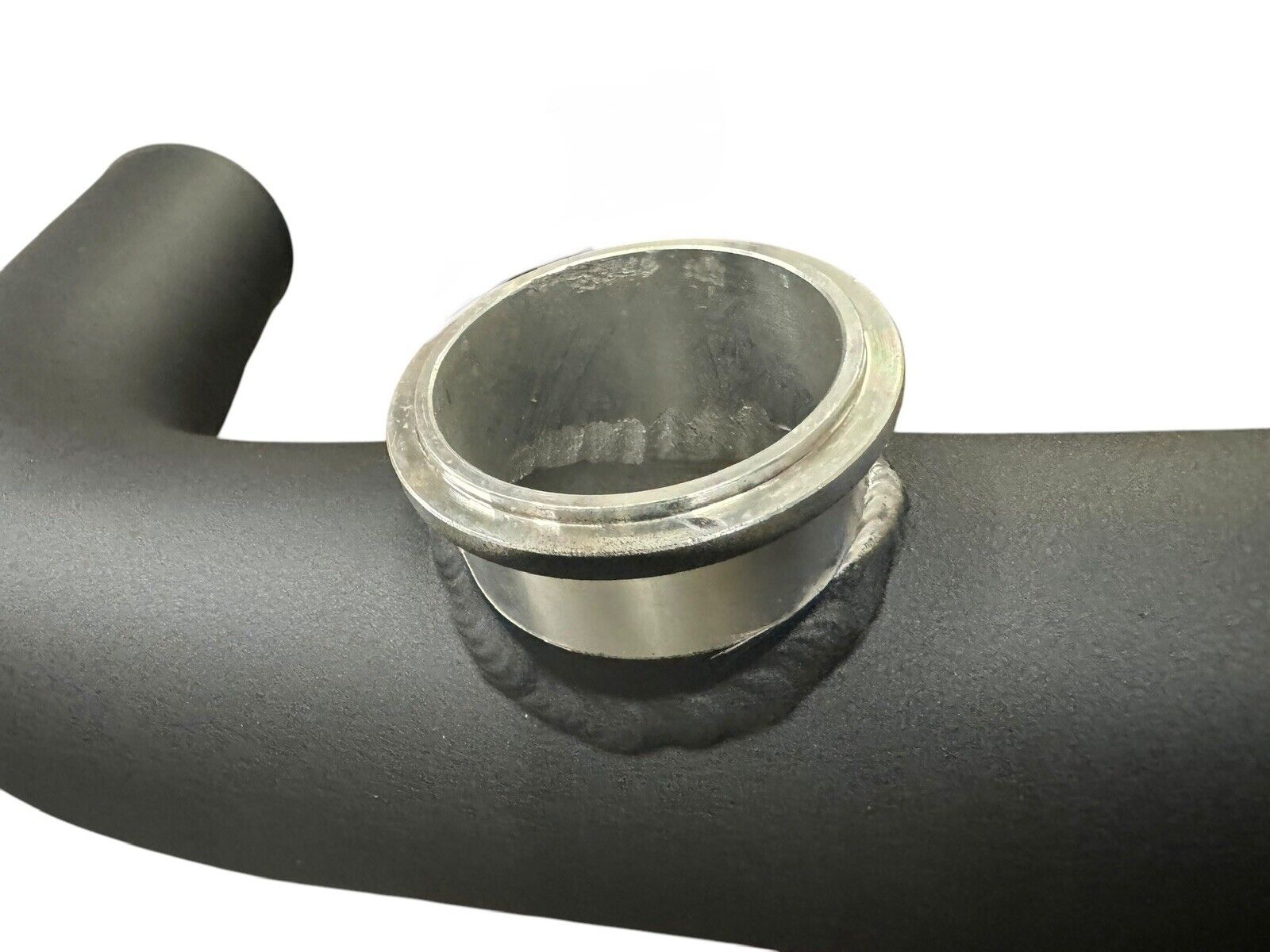

• BOV flange: 50mm (TiAL blow off valve compatible)
• Power rating: supports up to 750 HP

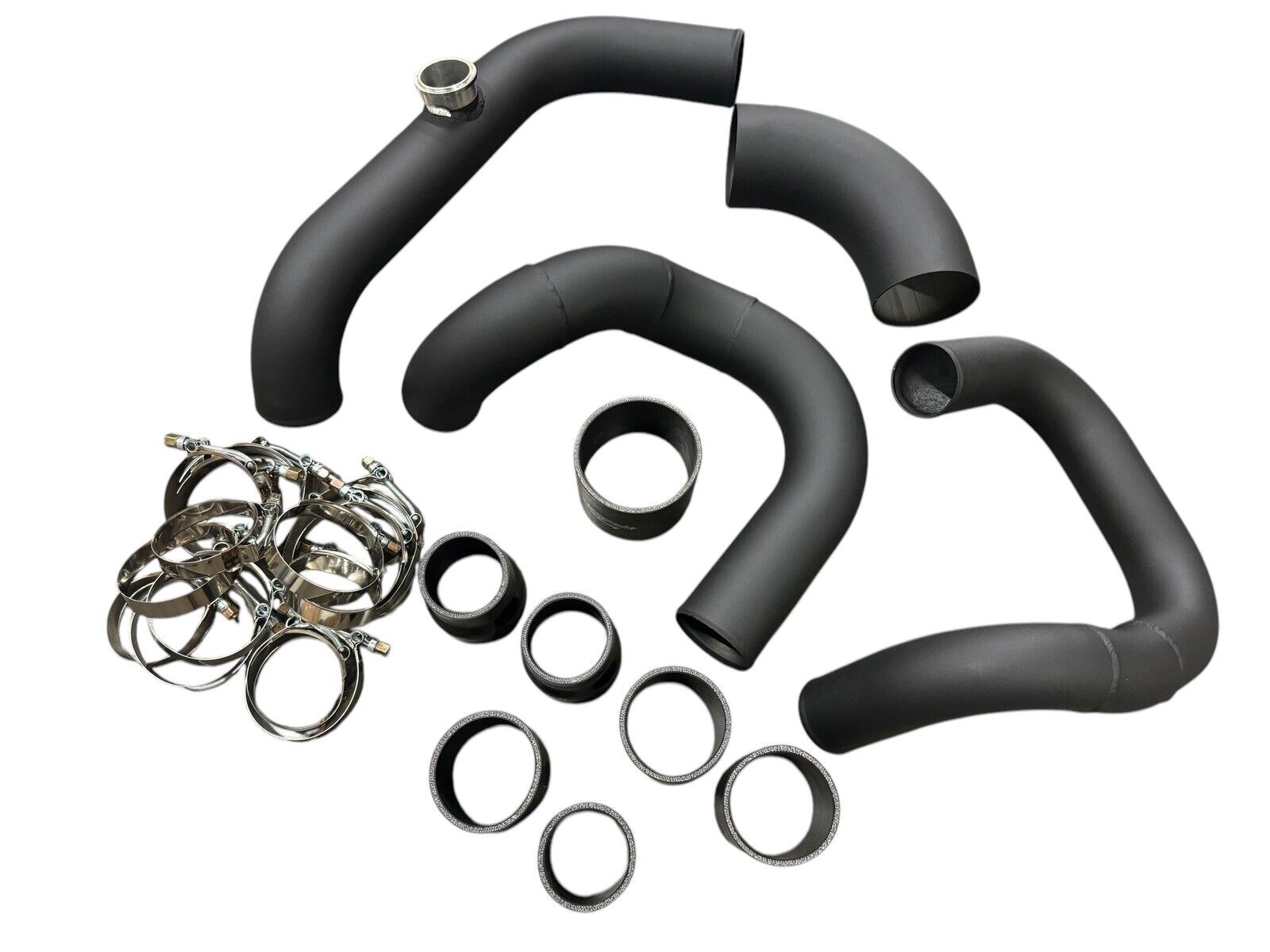

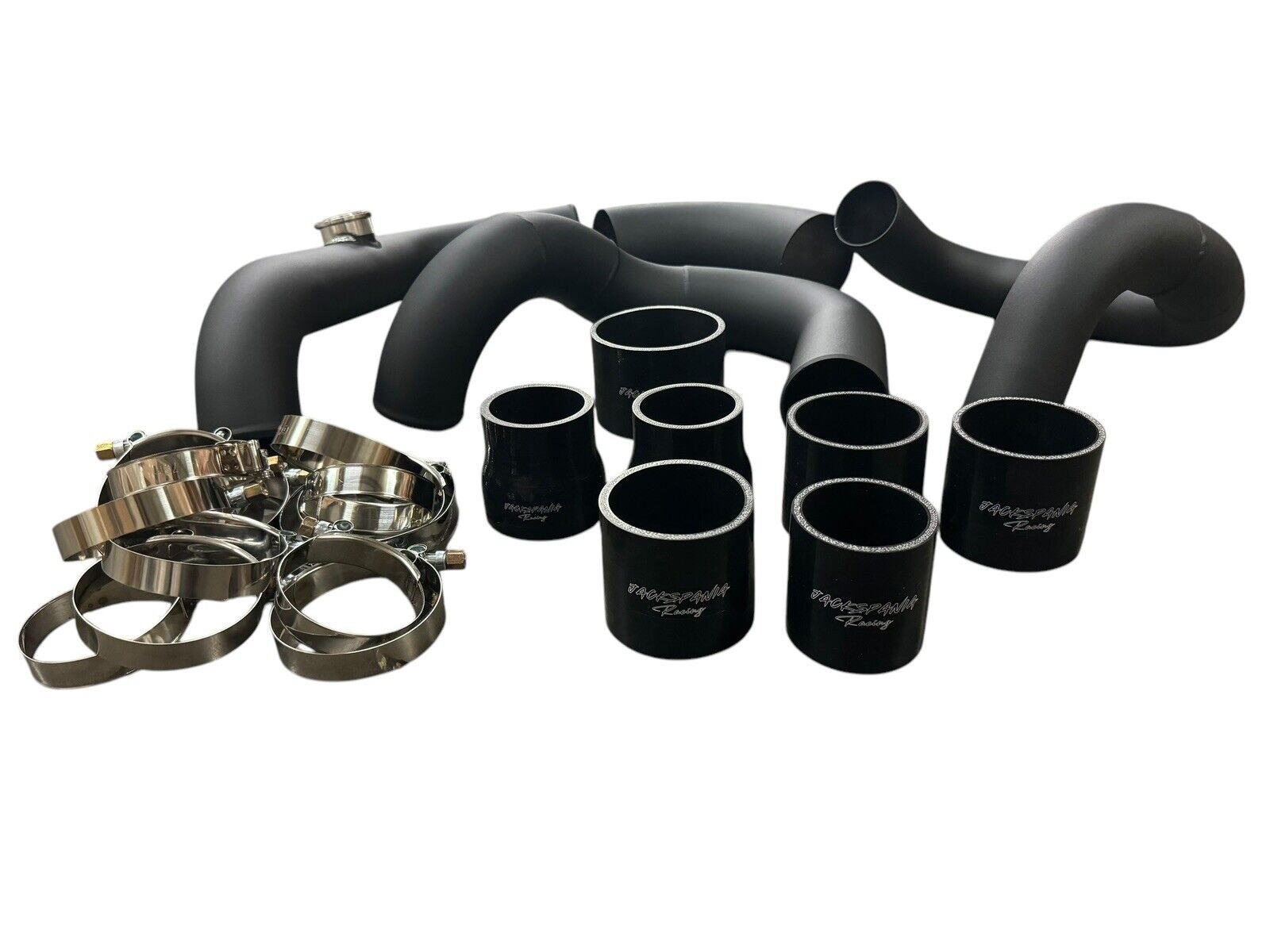

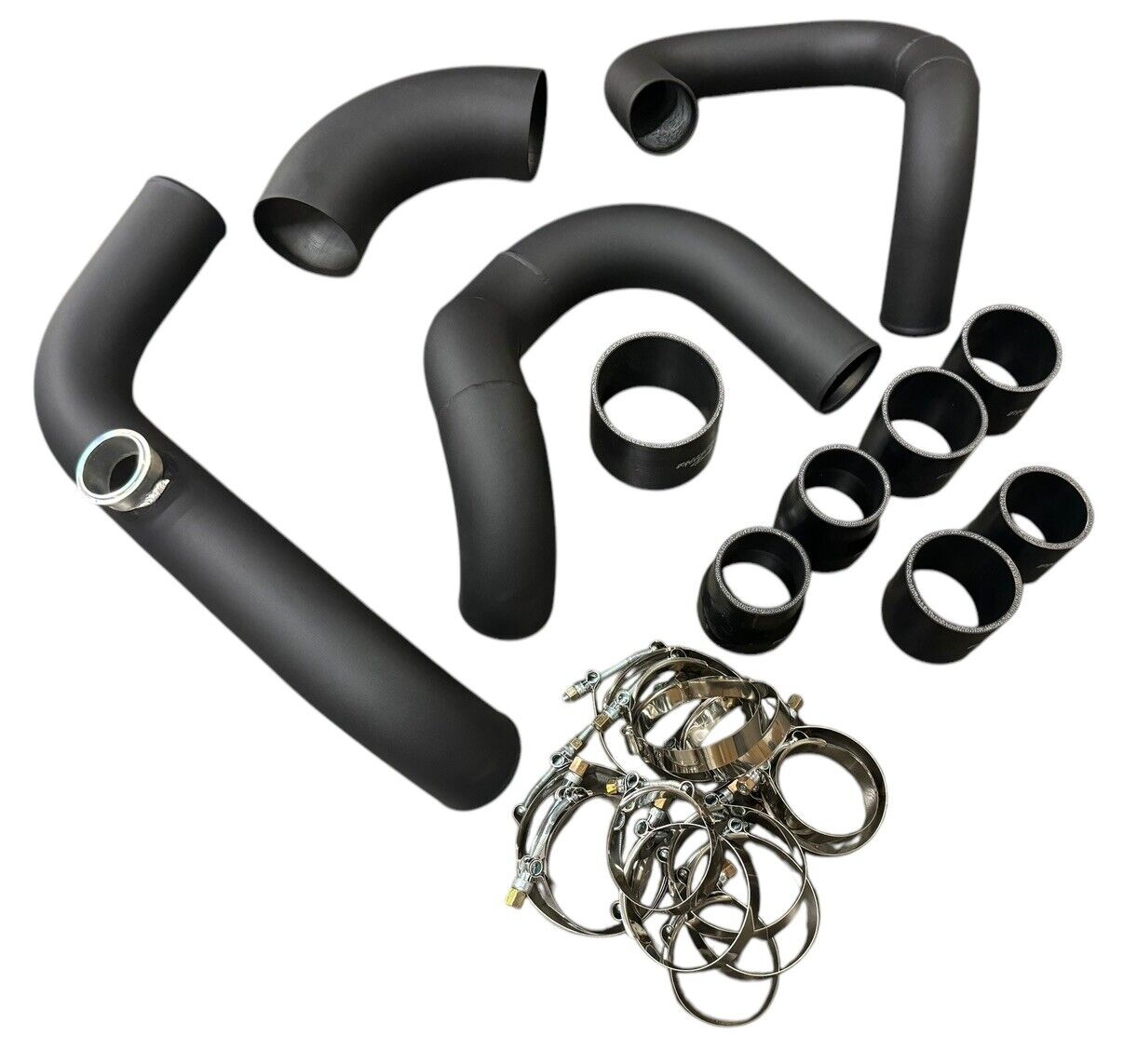

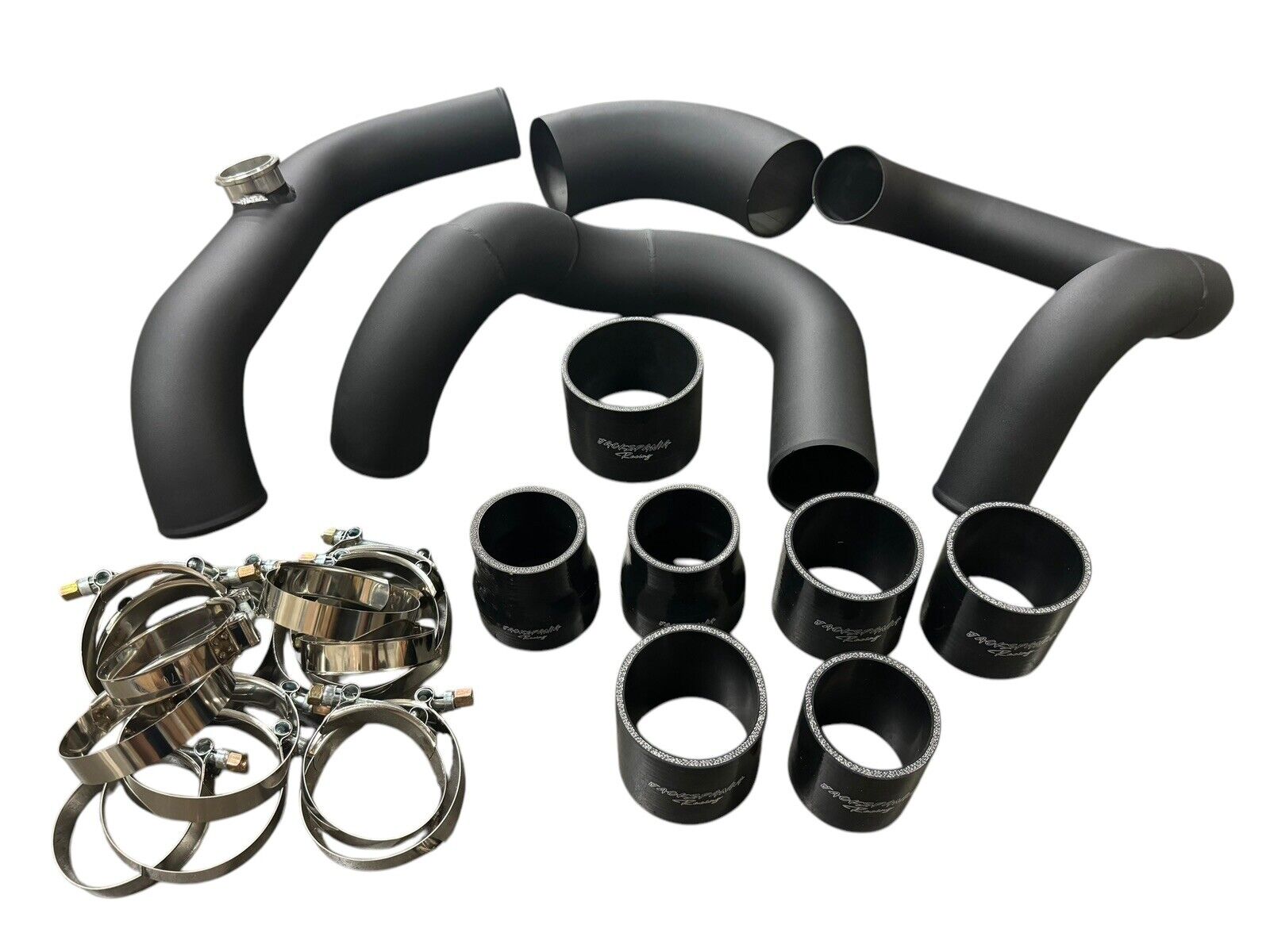

Includes

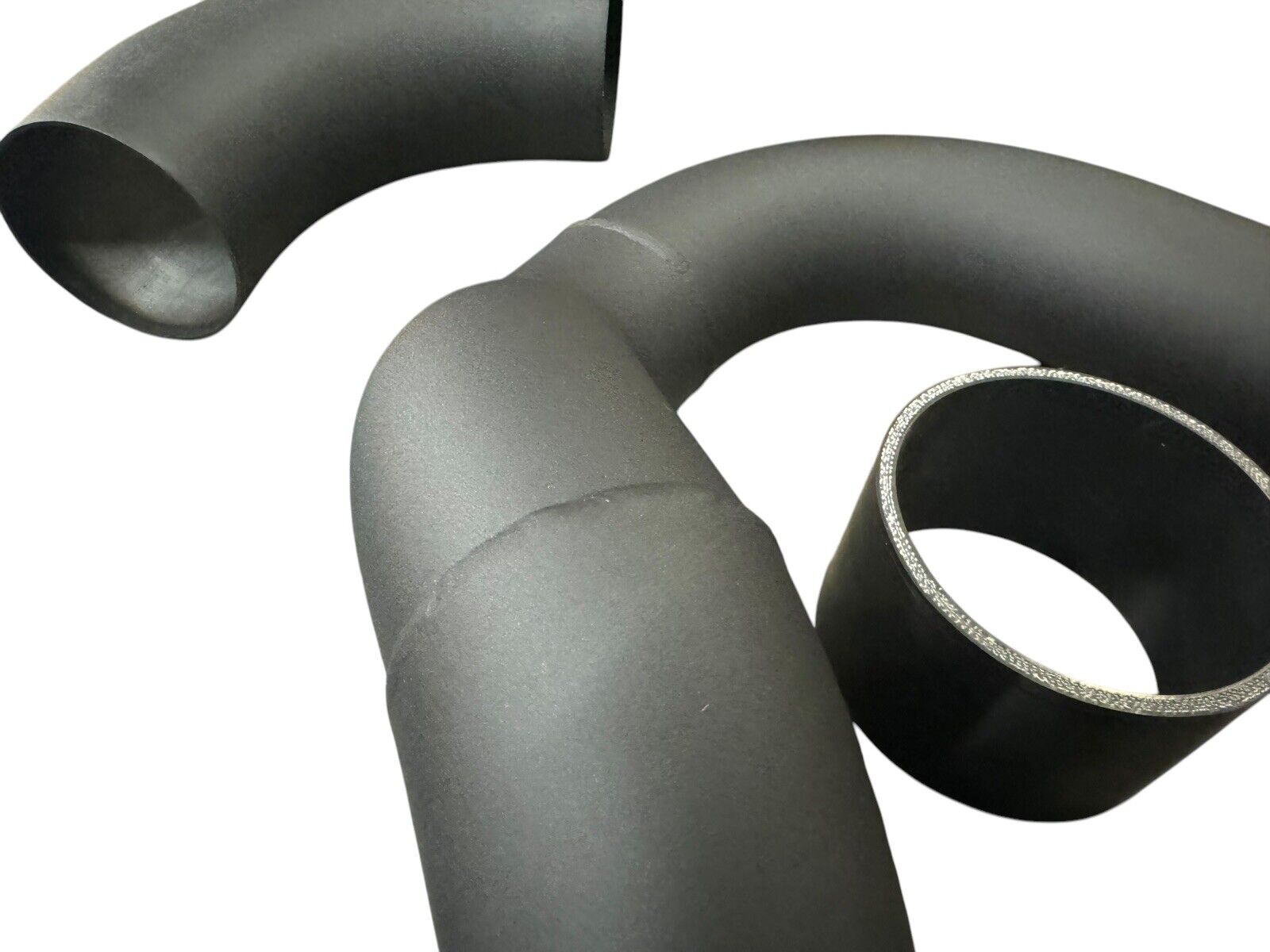

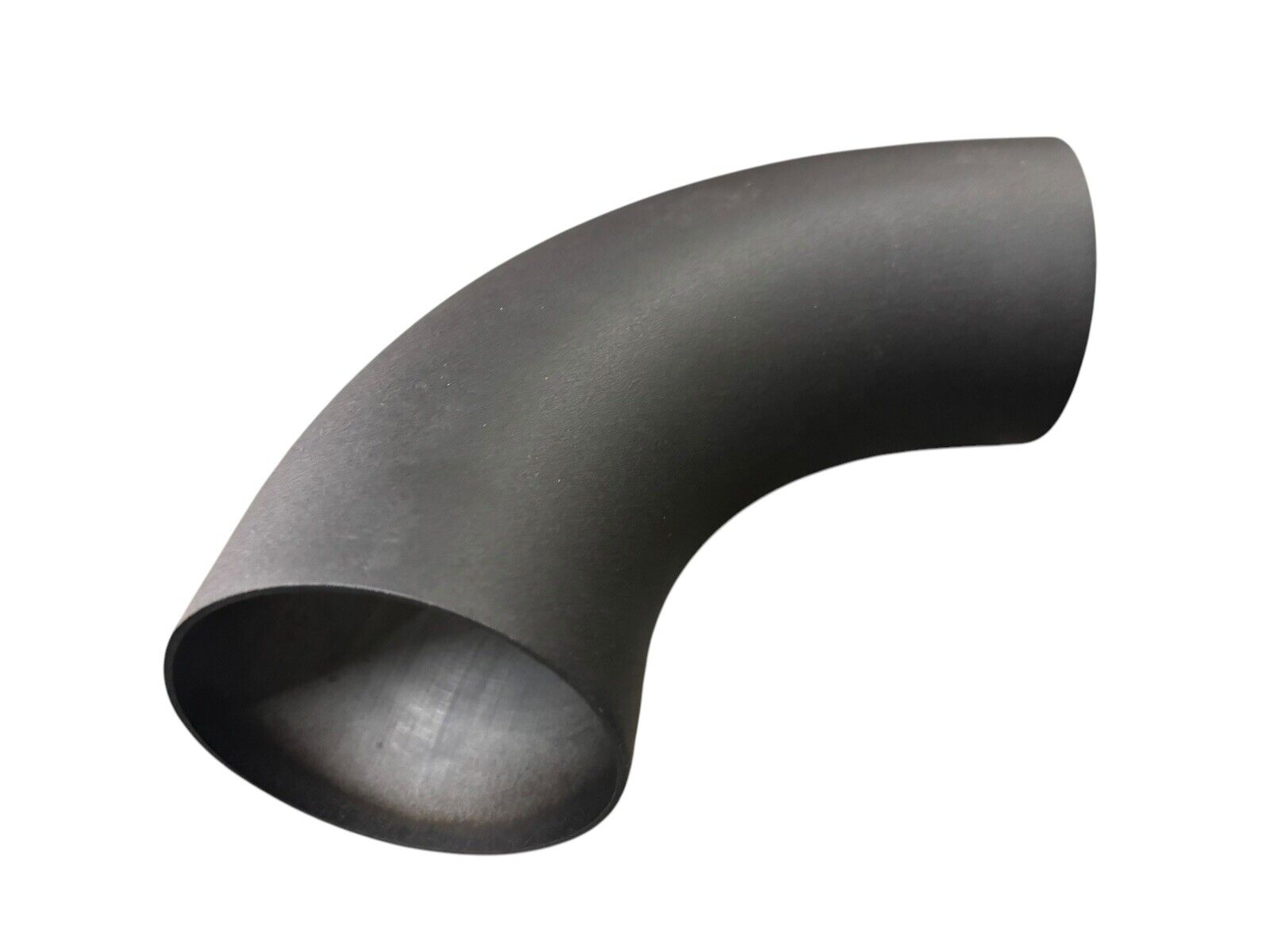

• Full intercooler piping kit

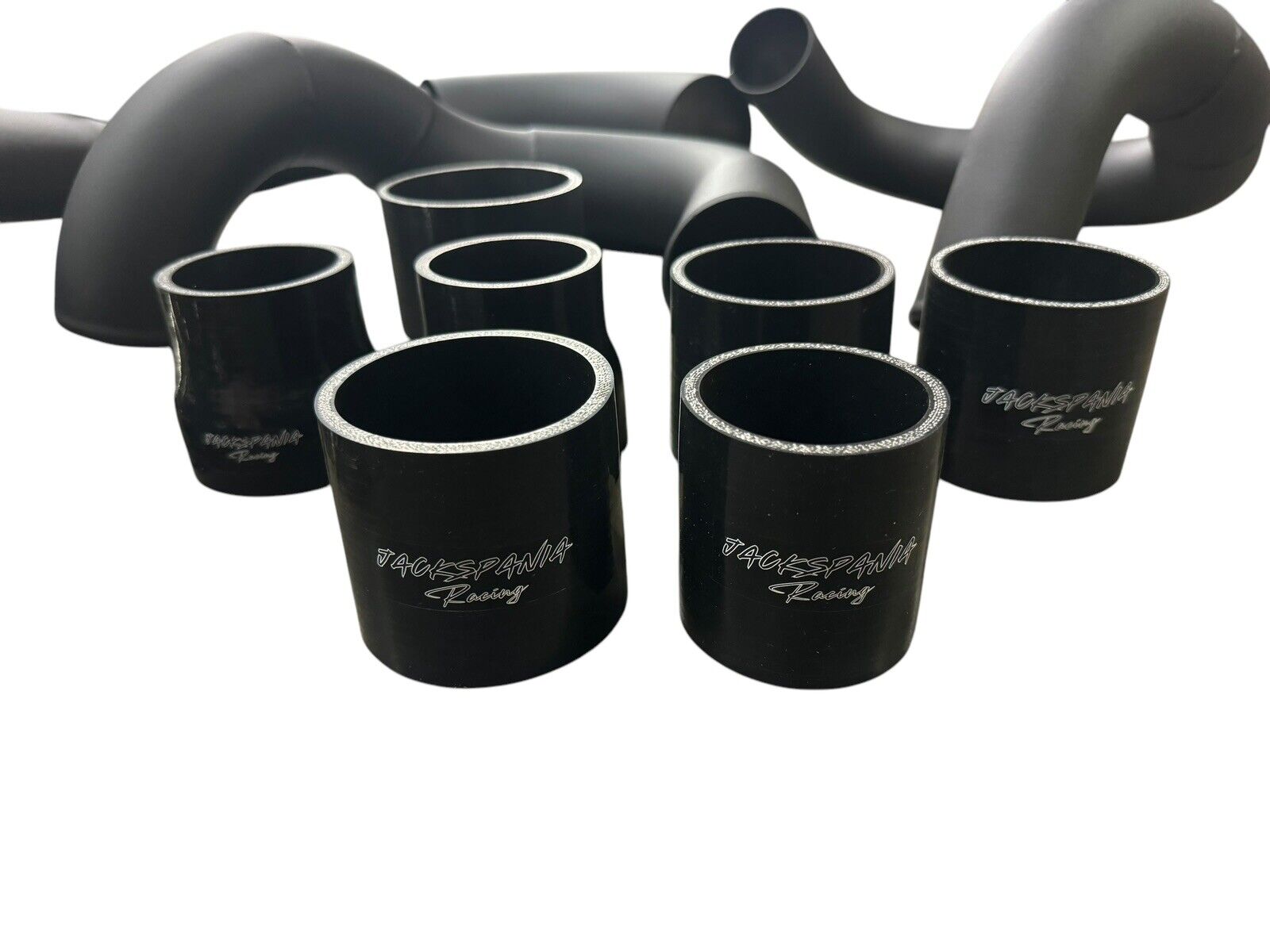

• High-quality 3-layer silicone couplers

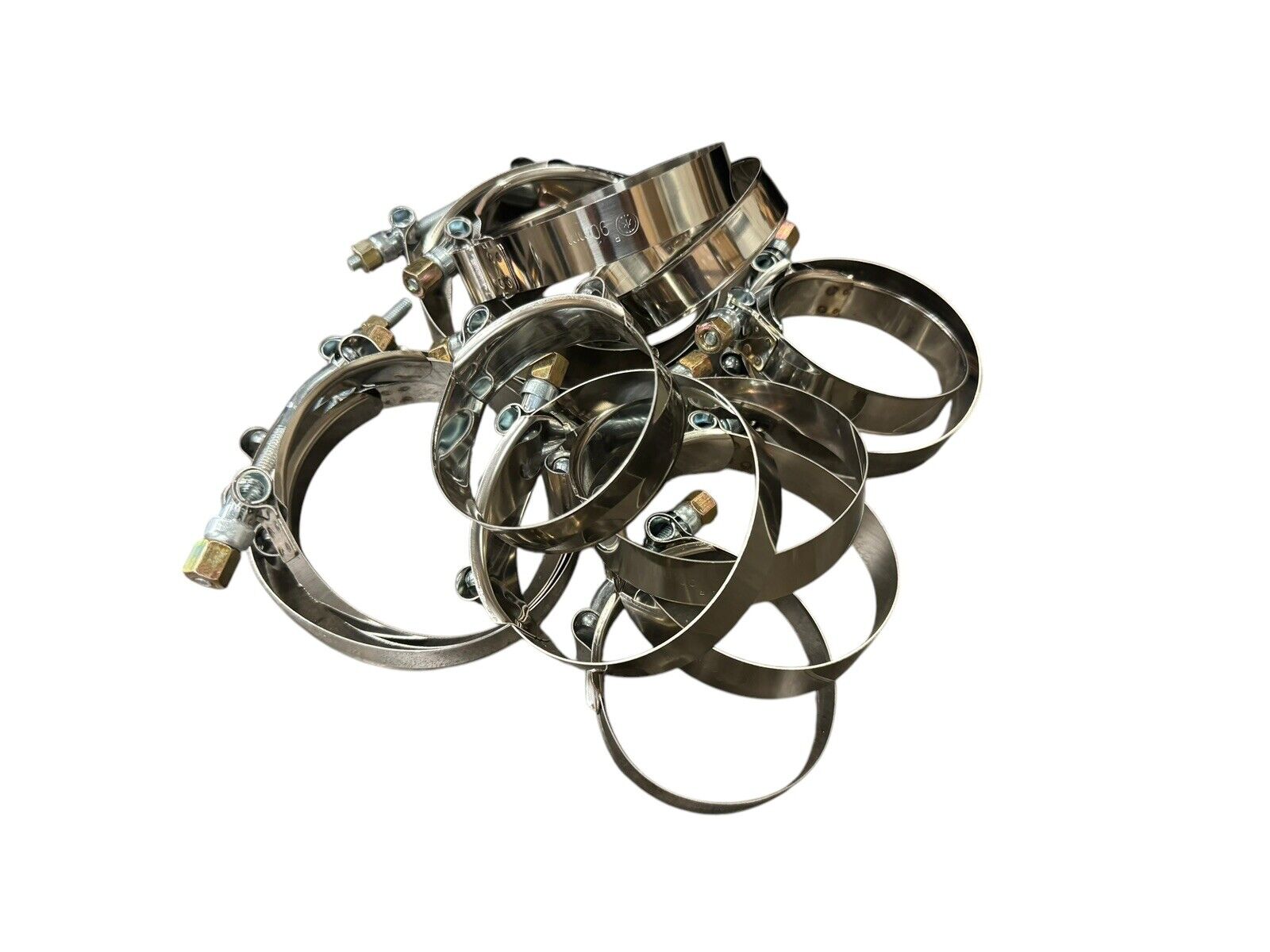

• Stainless steel T-bolt clamps
• 4-inch turbo inlet
