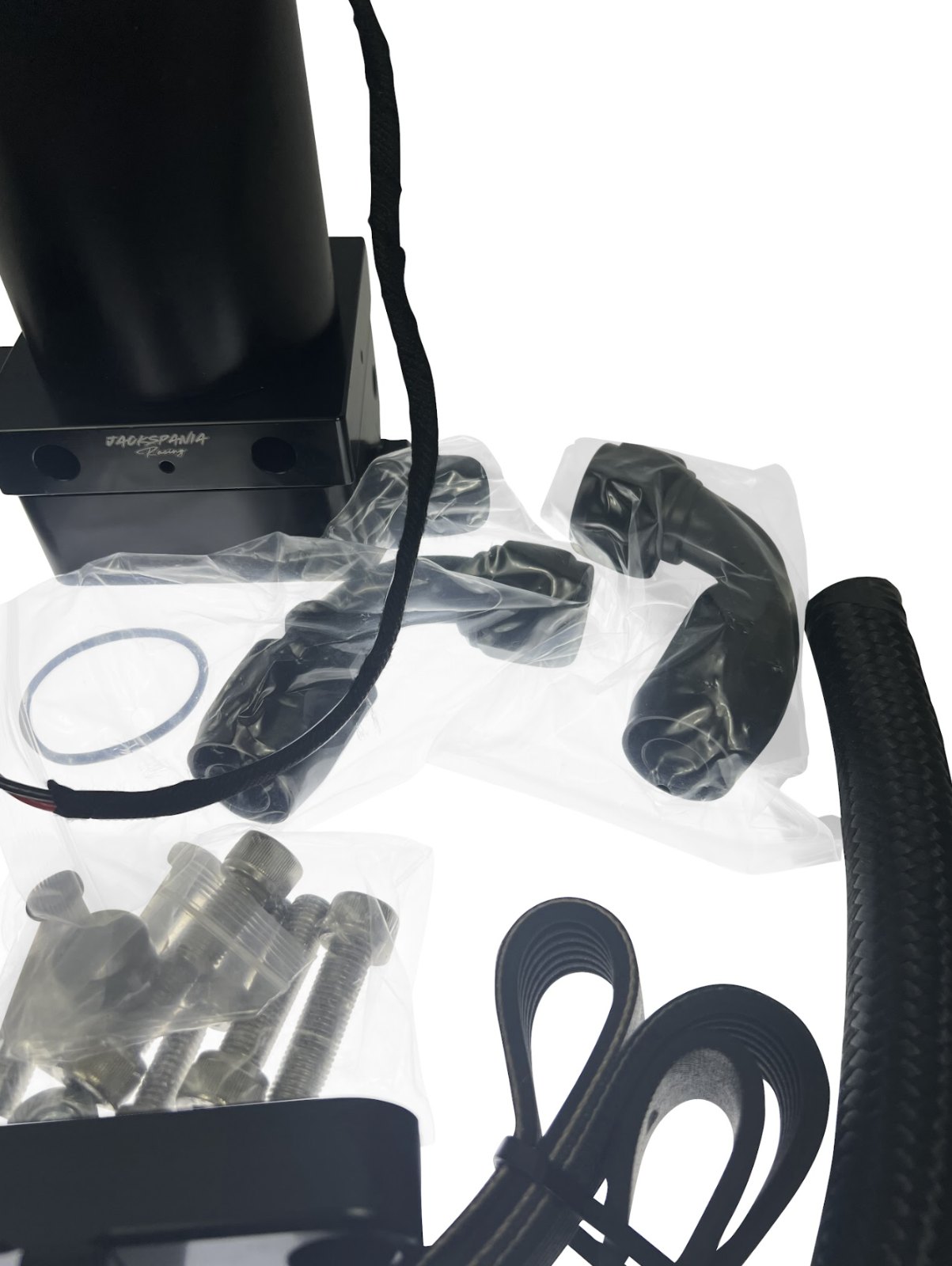

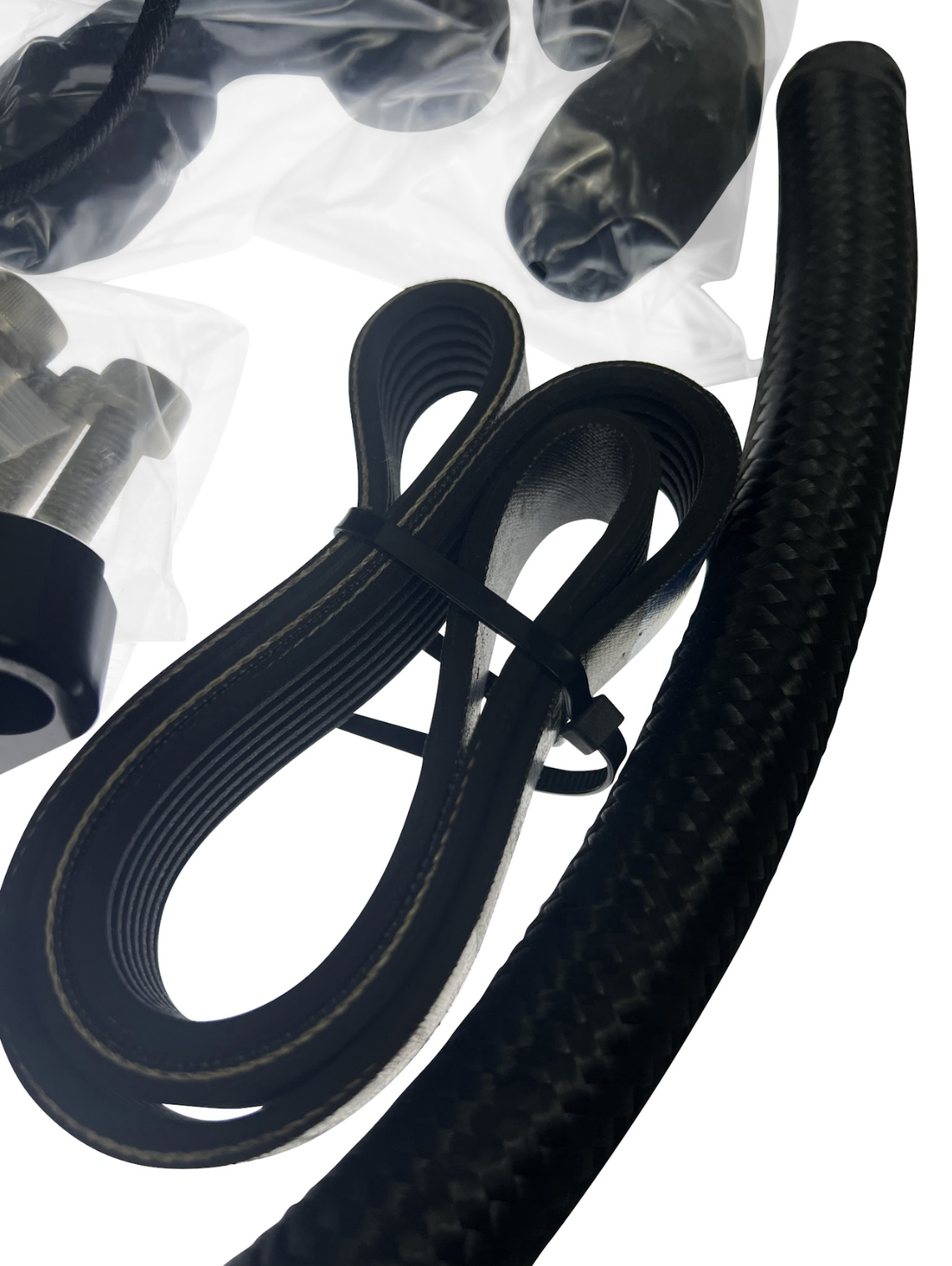

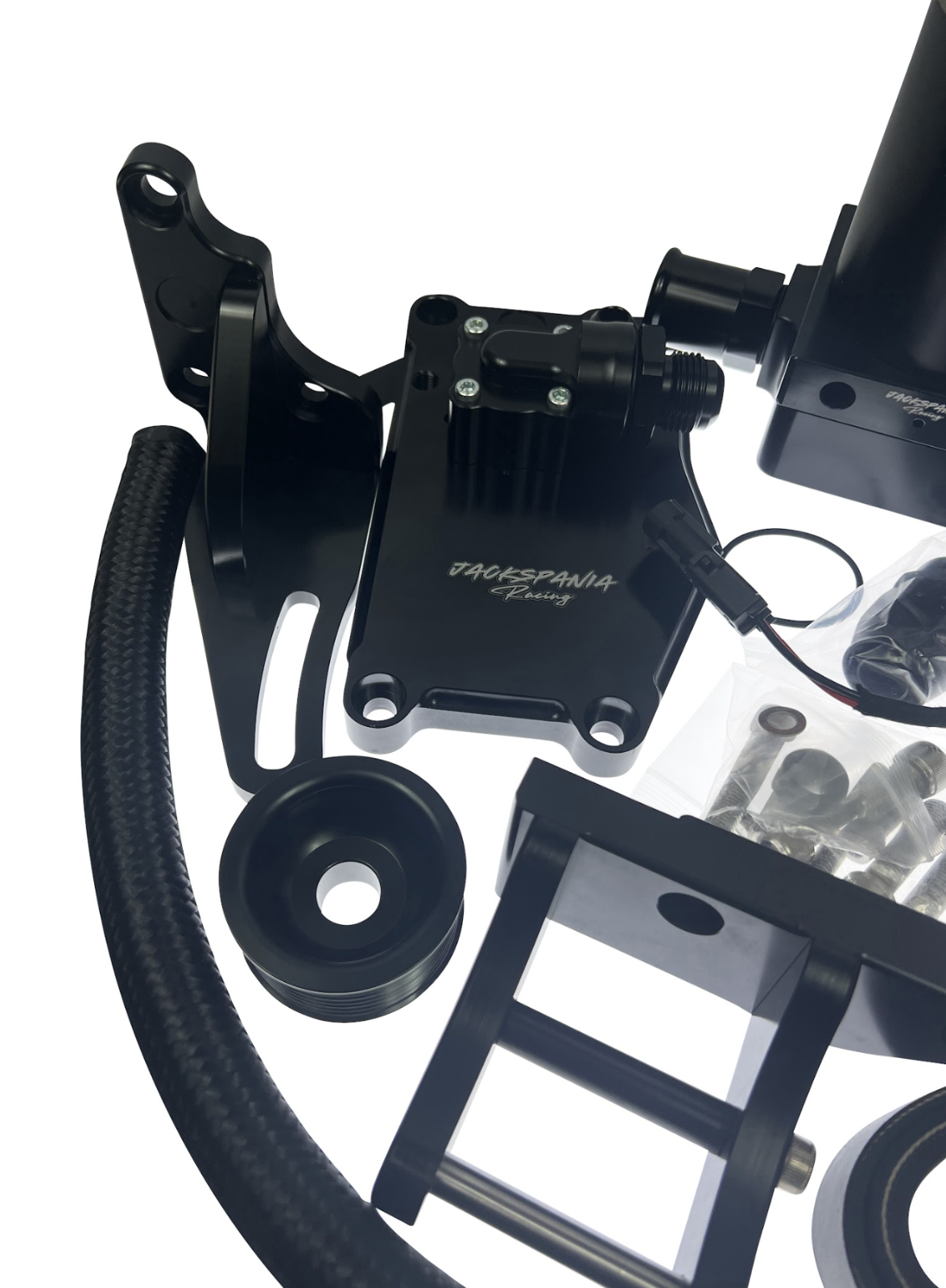

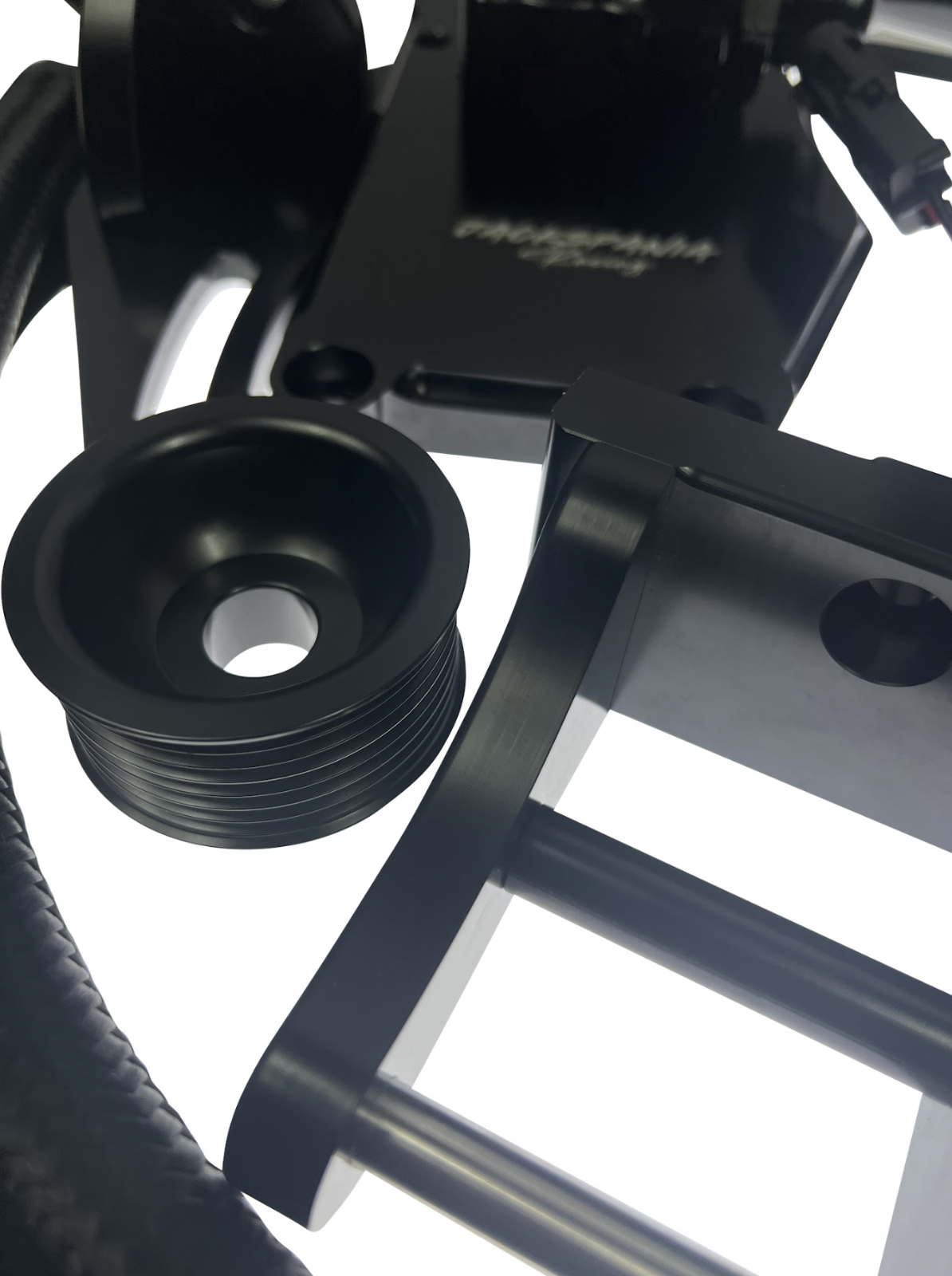

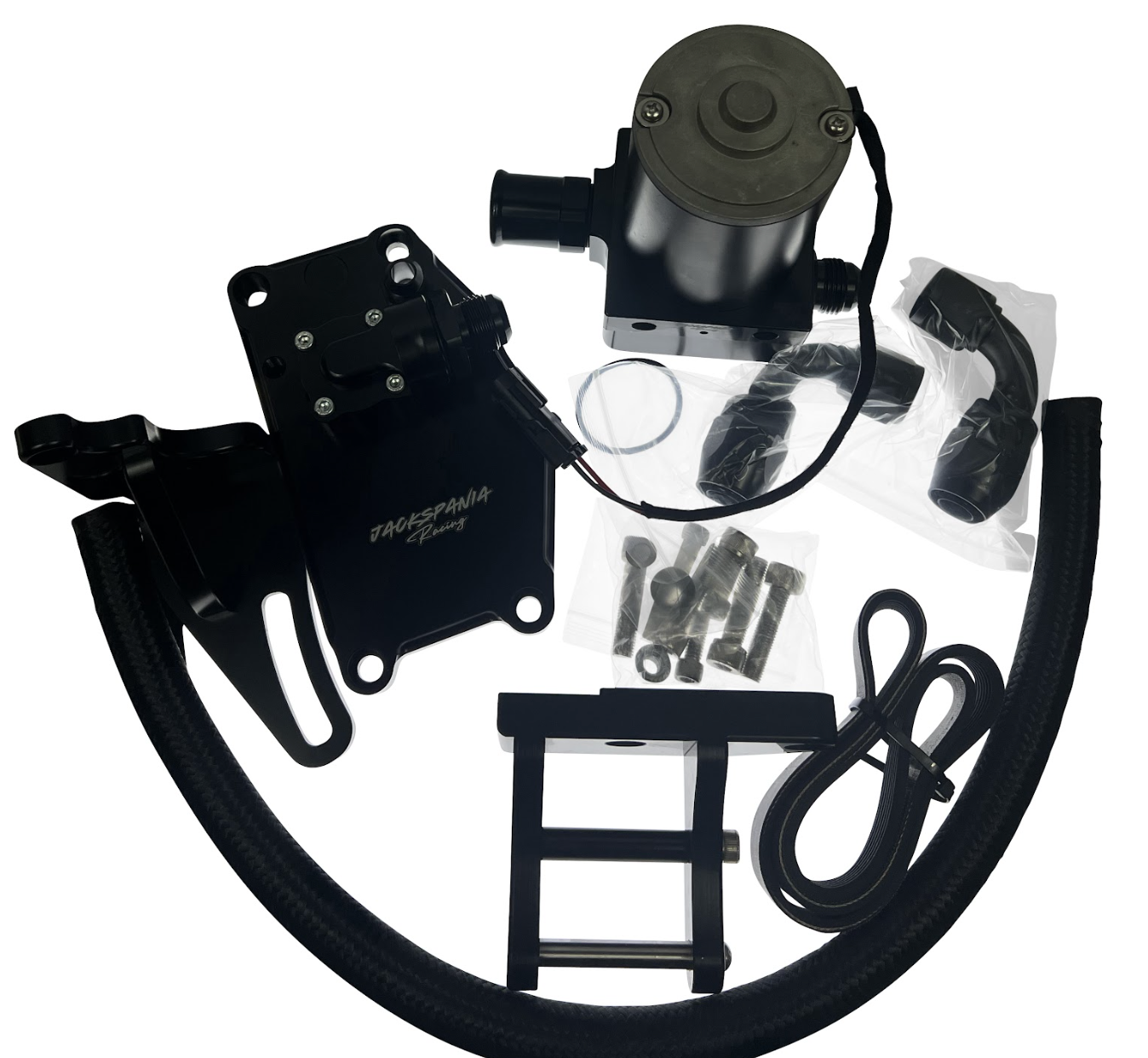

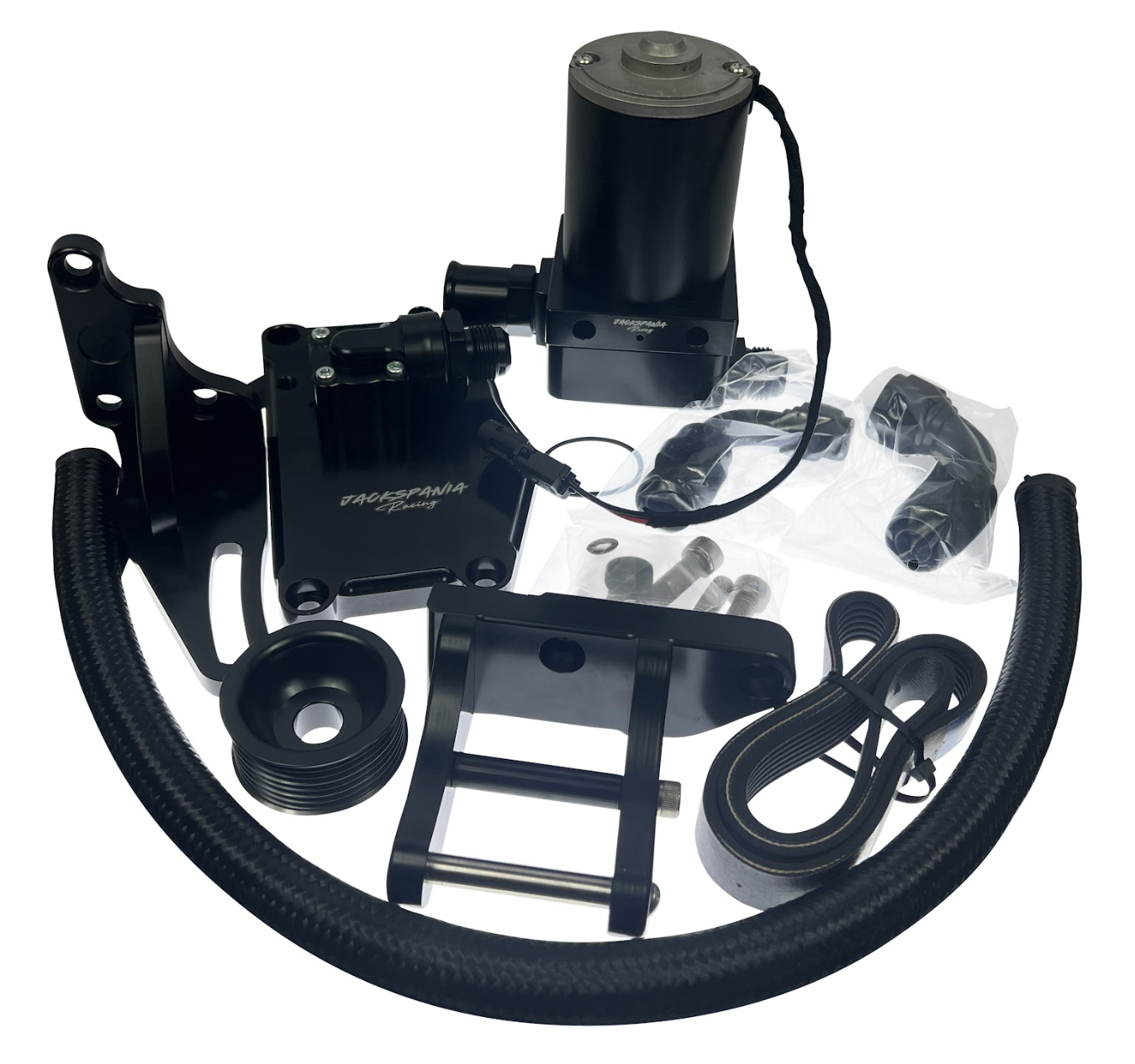

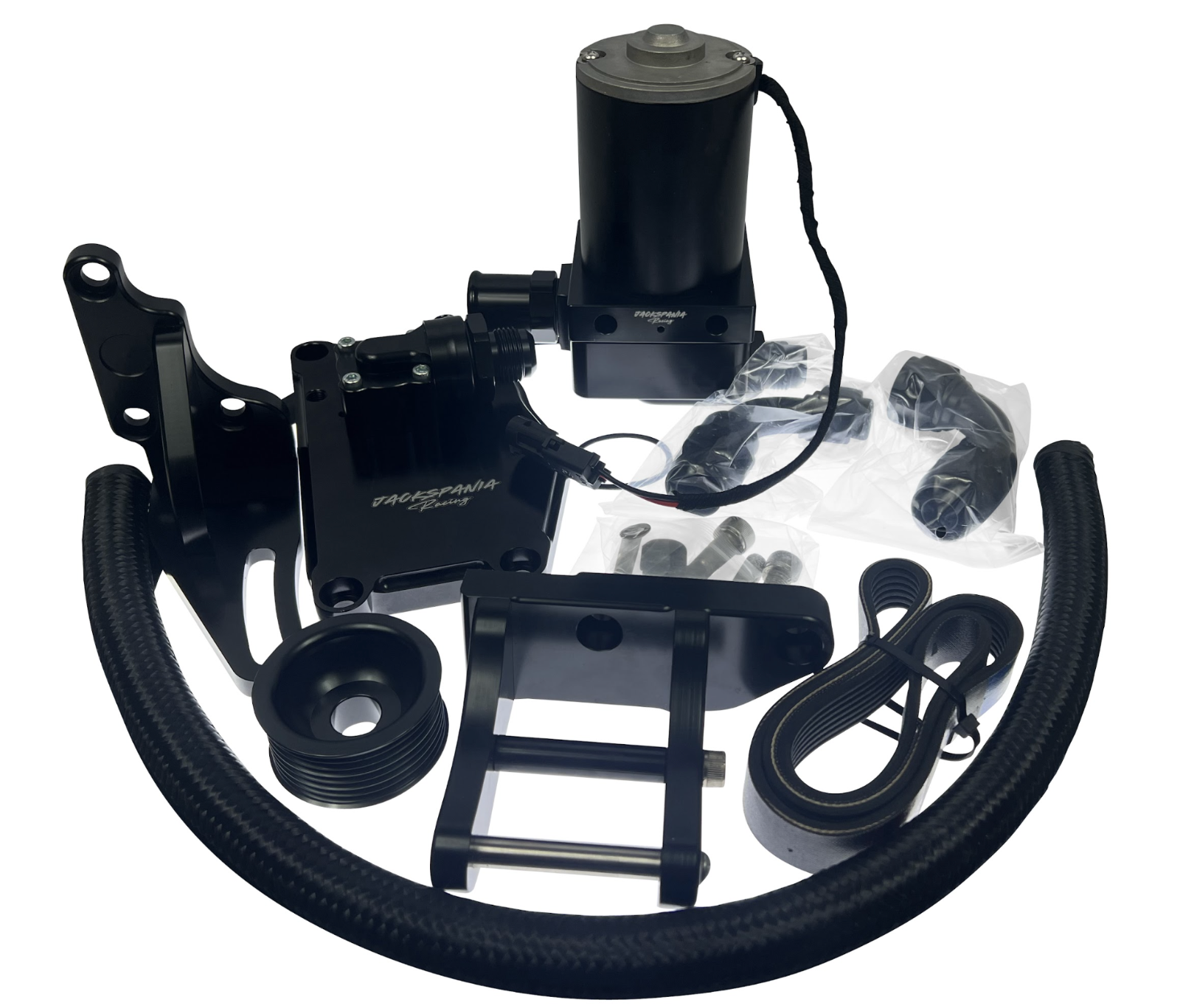

Billet K20 K24 K Series Electric Water Pump Plate Kit Alternator Bracket Fitting
Description
The water plate/pump kit is designed for race use only. It is not recommended on street cars or stock/mild builds. Since the water plate/pump is at full flow at all times it can over-cool cars that are not under WOT most of the time. It does not have a thermostat nor regulated flow. Cannot be used with AC, Power Steering, Supercharger, or any other belt driven accessories other than the alternator.
Made of billet aluminum

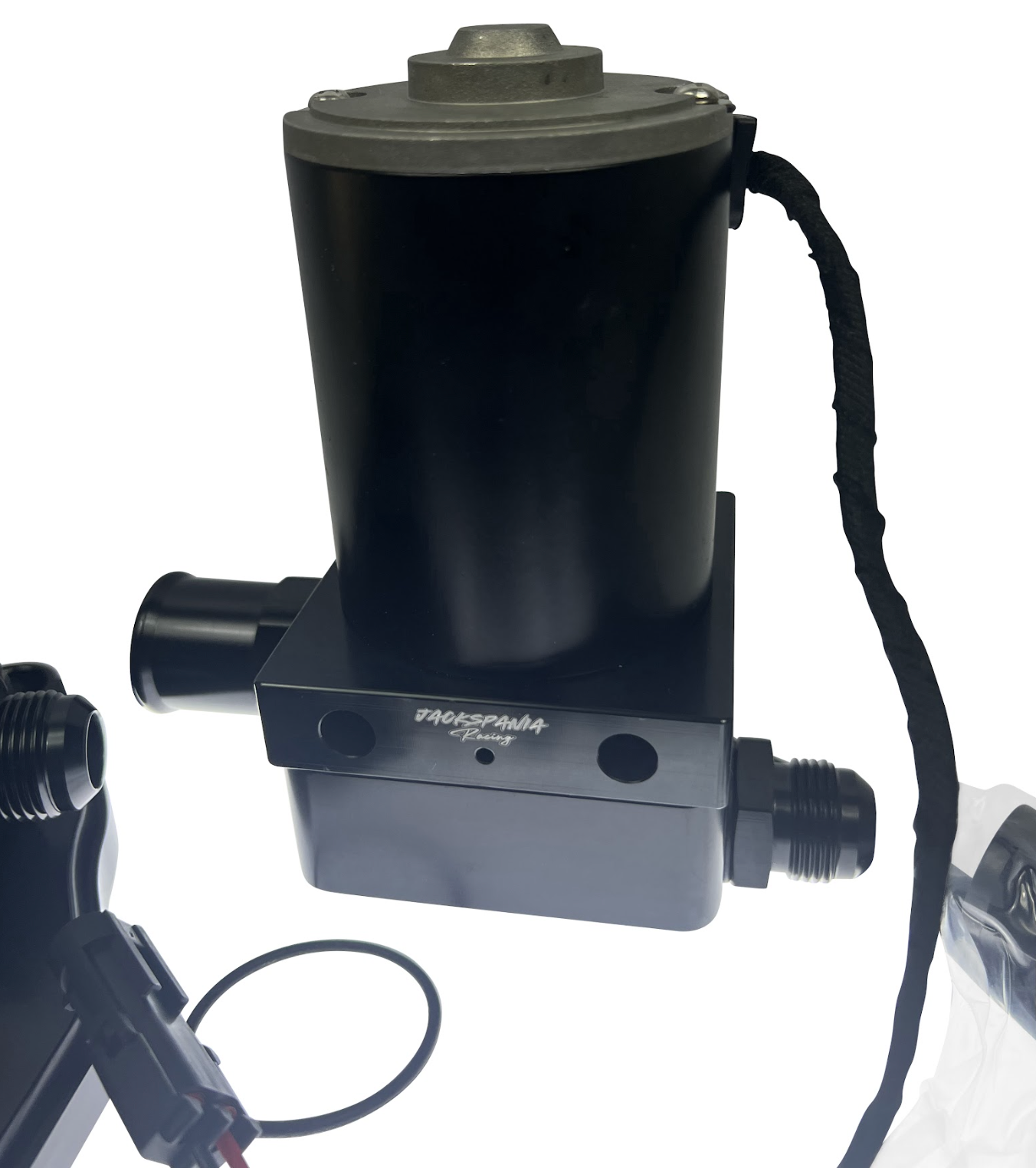

Water pump provides 20 gallons per minute flow rate (uses 12 ORB fitting on both the inlet/outlet of pump)
Do not use a Full Length -12AN Fitting inside the pump as it will interfere with the pumps internals and could destroy your pump (Voids Warranty)
Replaces the oversized OEM water passage with a lightweight & low profile block-off plate
High strength, multi-piece design ensures alternator is fully secured.
No alternator pulley swap required.
Designed to fit all K Series engines except K24Z, K24Y, & K20C Series engines.
Designed to save weight, reduce drag and tuck the OEM alternator closer to the block.
Removes oem water pump, auto tensioner, P/S, A/C and EP3 pulley
Designed to be used with the lighter D/B series alternators
Large coolant port is tapped for -16AN thread
Smaller Breather port is tapped for -8AN thread
Reduces parasitic drag to in turn increase the overall performance of your race engine.
This part is intended for use on true high performance race car builds only!
