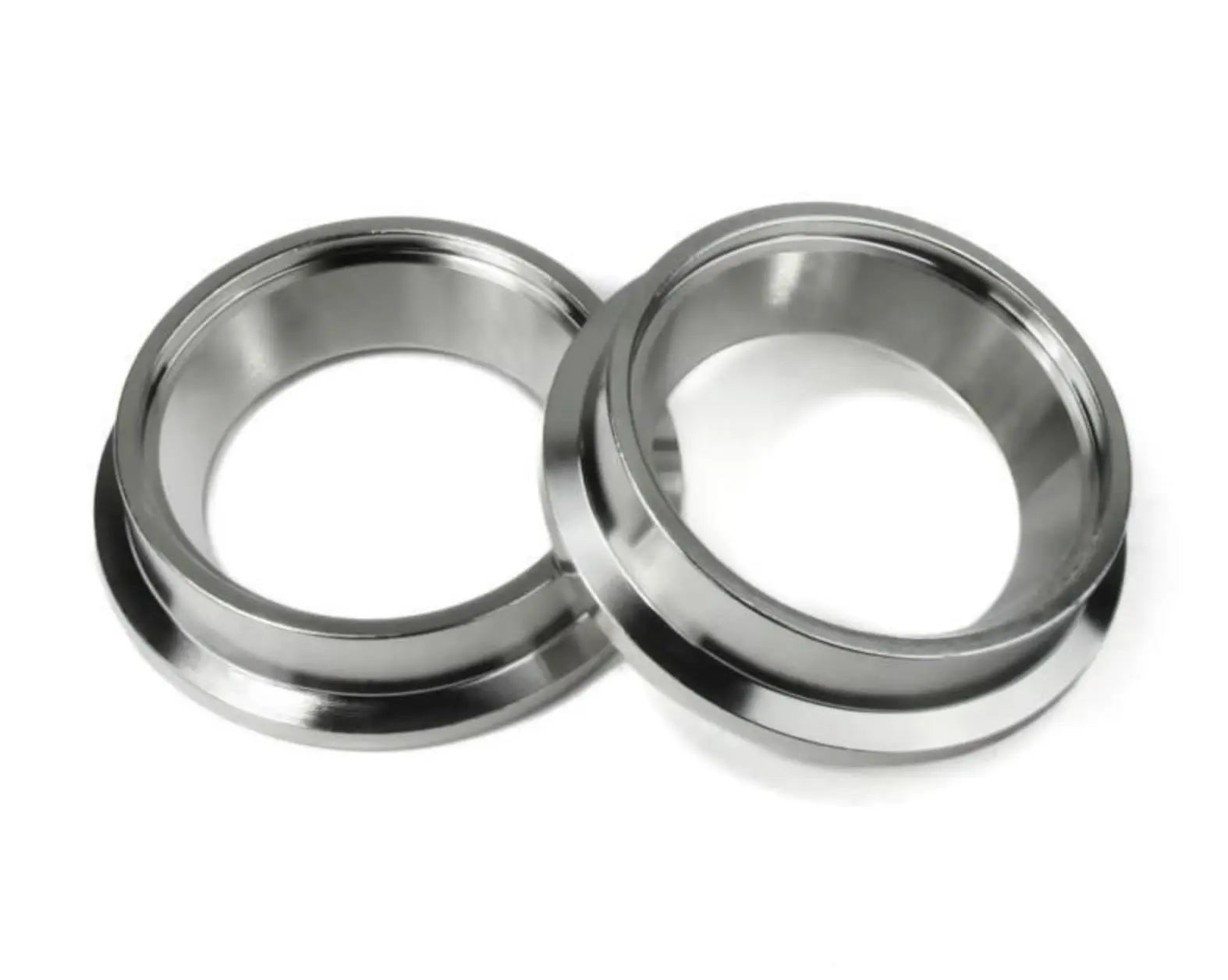

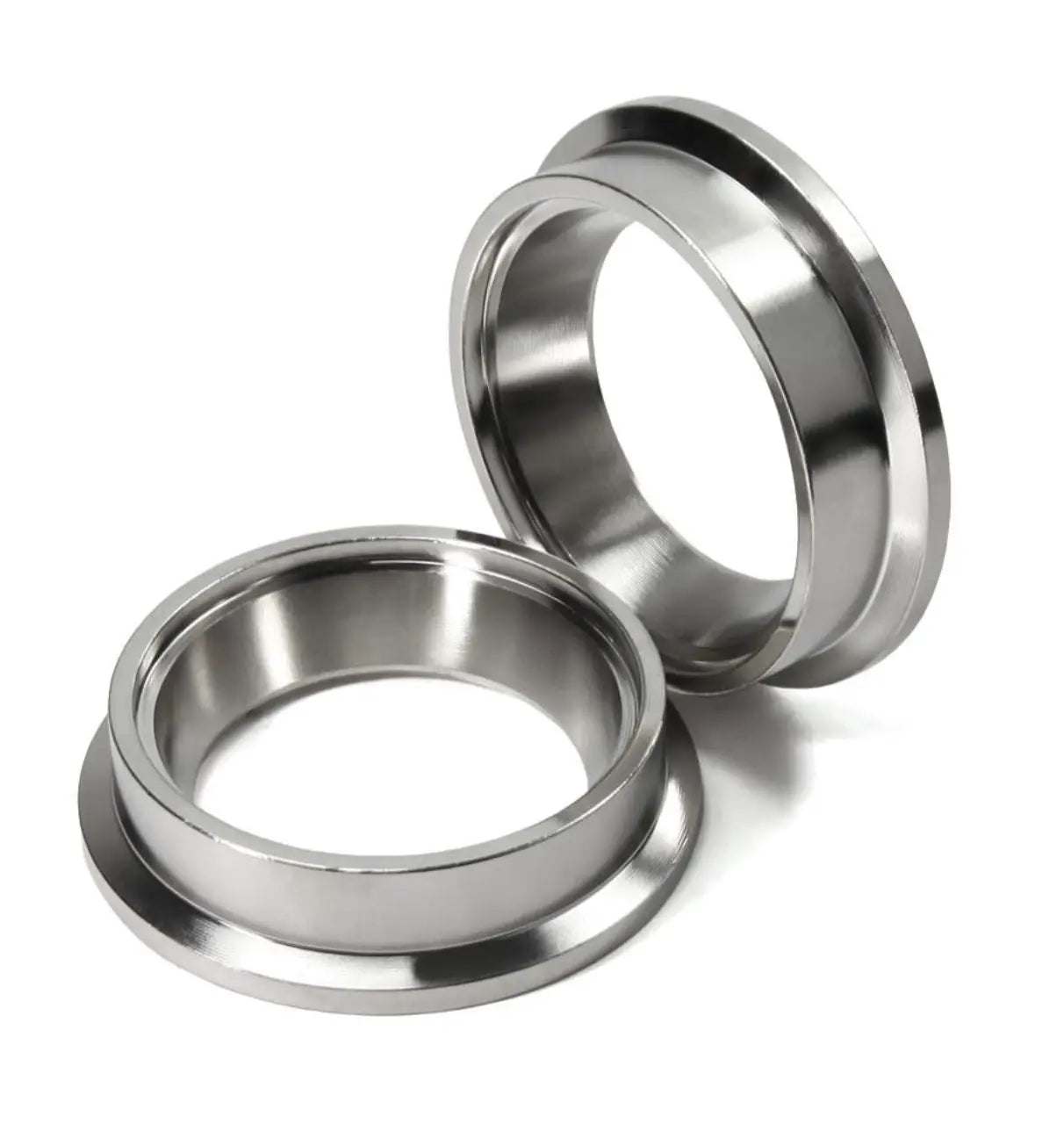

38mm Wastegate Flange Set – Inlet & Outlet V-Band | SS304 Stainless | Compatible with TiAL MVR

38mm Wastegate Flange Set For TiAL MV-S MVS Inlet + Outlet Vband 304 Stainless Tube

PRODUCT DETAILS

Vband Flange set for Tial 38mm MV-S Wastegate. Includes (1) 304 stainless inlet flange and (1) 304 stainless outlet flange. Perfect for reusing a wastegate on a new setup. Everything is precision CNC turned for precise fit and made with high quality 304 stainless

Specifications 38mm Inlet Flange:

• Application: TIAL 38mm MV-S Wastegate
• Material: 304 Stainless
• Vband OD: 55.40mm
• Flange ID: 44.75mm/1.762" (1.75" Tube Socket Weld)

Specifications 38mm Outlet Flange:

• Application: TIAL 38mm MV-S Wastegate
• Material: 304 Stainless
• Vband OD: 48.9mm
• Flange ID: 38.35mm/1.51" (1.5" Tube Socket Weld)
